GUARDIAN SUPREME: PIPELINE WASHER

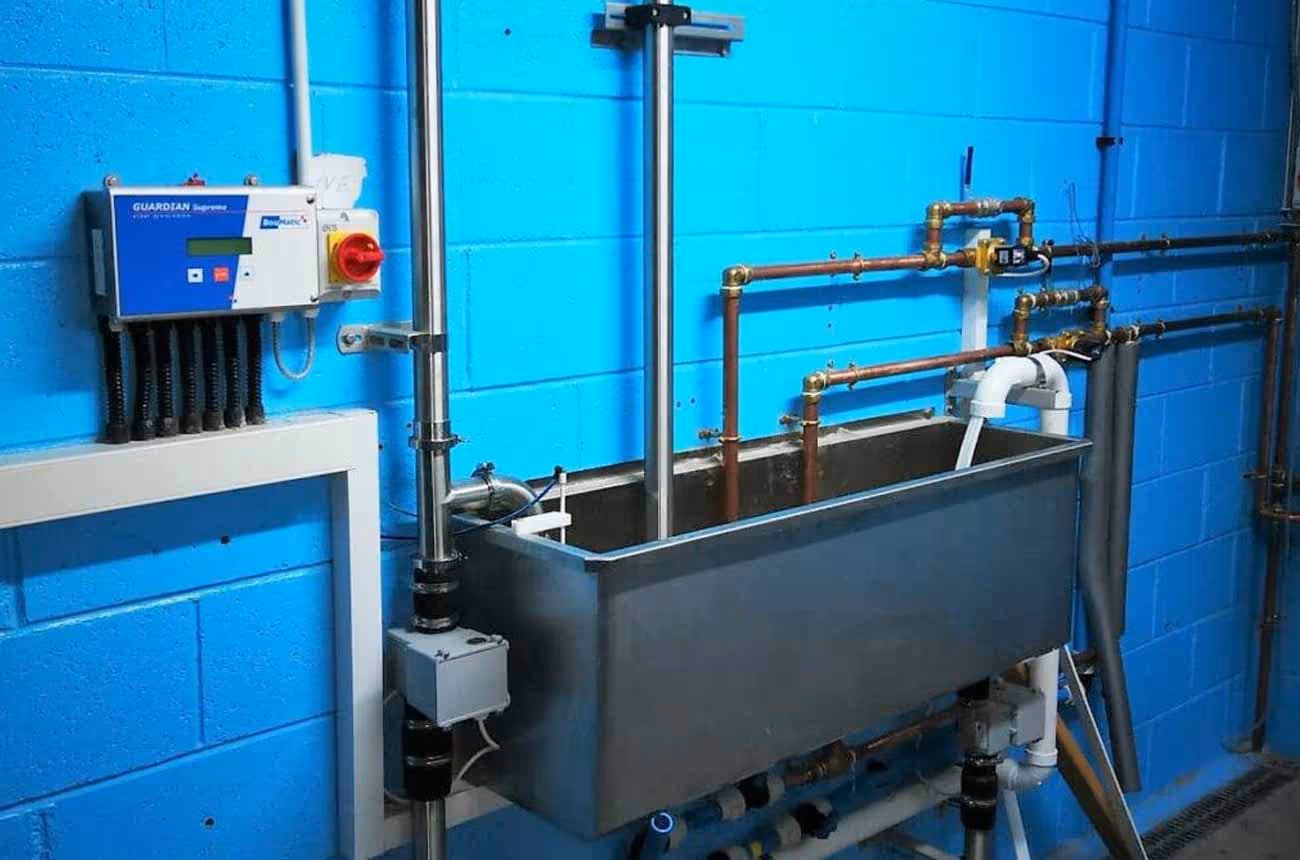

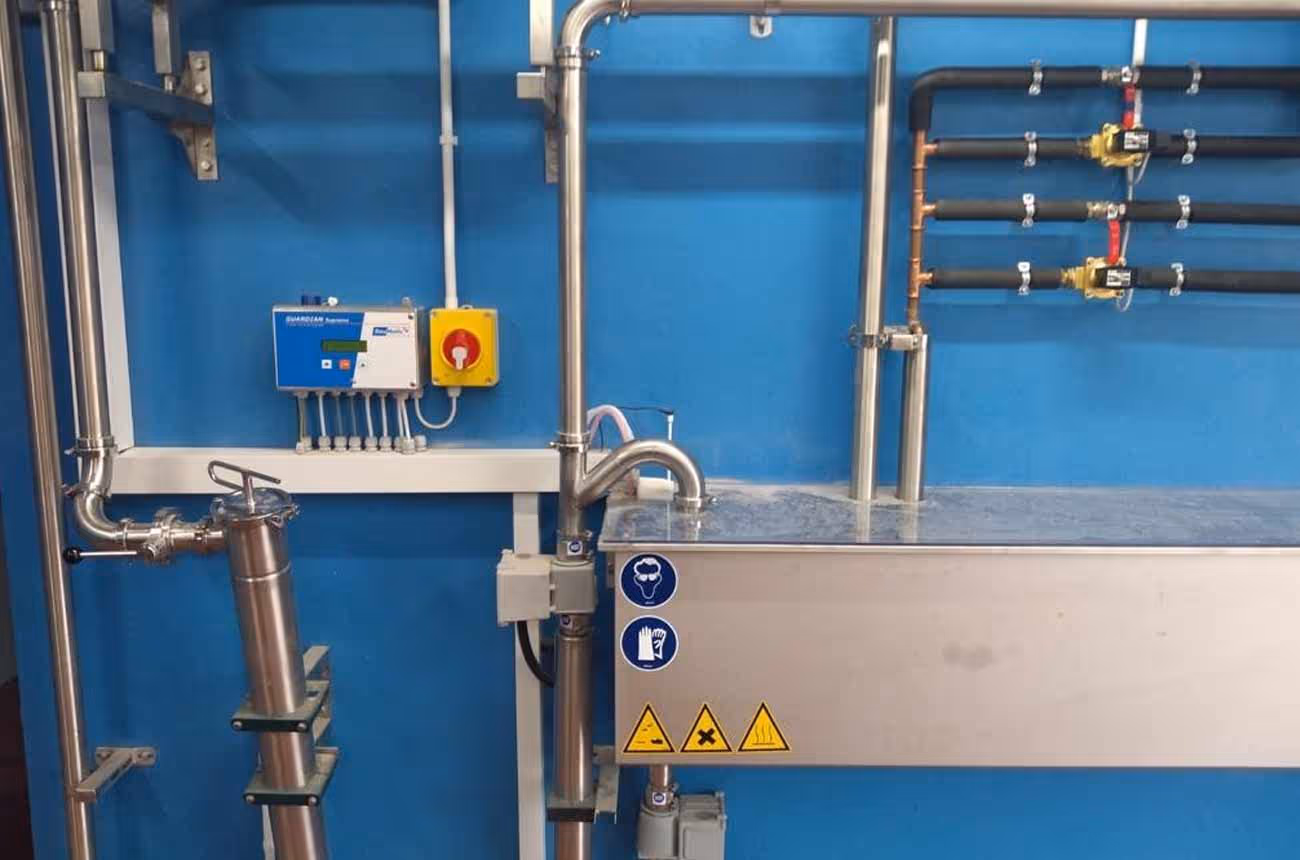

The BouMatic Guardian Supreme pipeline washer is a system that automatically controls the washing of clean-in-place (CIP) milking systems. Upon activation at the electrical module, the washer automatically dispenses cleaning chemicals into water that fills the wash sink for circulation through milk lines and equipment.

The user can easily program amounts of chemical, water temperatures, length of cycles, and other washer functions, all of which the washer controls precisely. Water temperatures for the various cycles are controlled by a combination of electrically actuated water valves.

Automatic drainage is provided by an electric sink drain. A level switch controls the water level in the sink. The washer can also control a diverter valve, a water separation valve for management of circulated water, and an air injector.

This programmable electronic pipeline washer for milking installations, consists of 2 modules :

• One module for the control electronics, the digital display screen, and the programming buttons.
• One module for the 3 dosing pumps that allow the traditional alternating wash and concentrated wash with three washing chemicals (alkaline, chlorinated, acid) in the same cycle.
